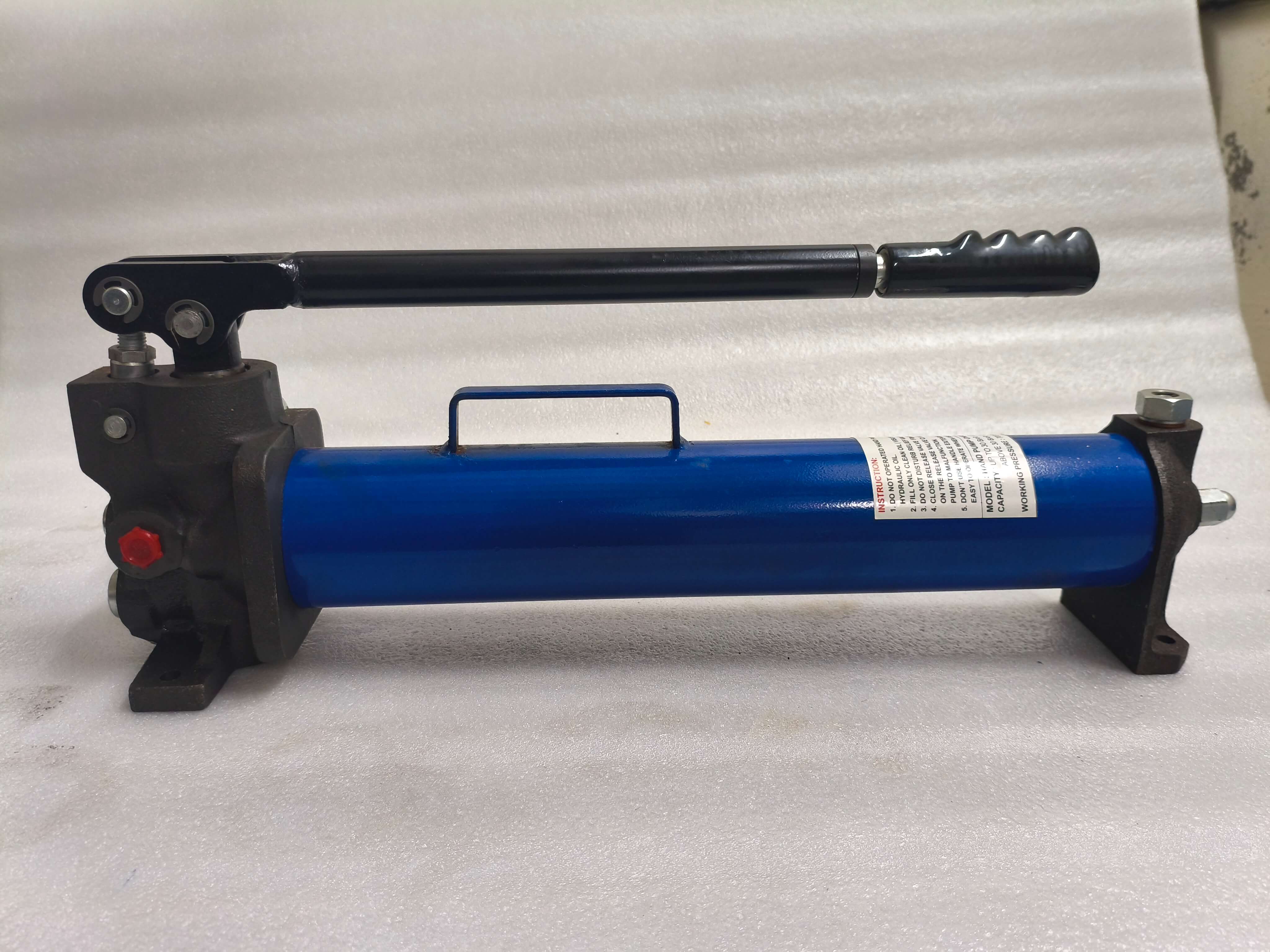

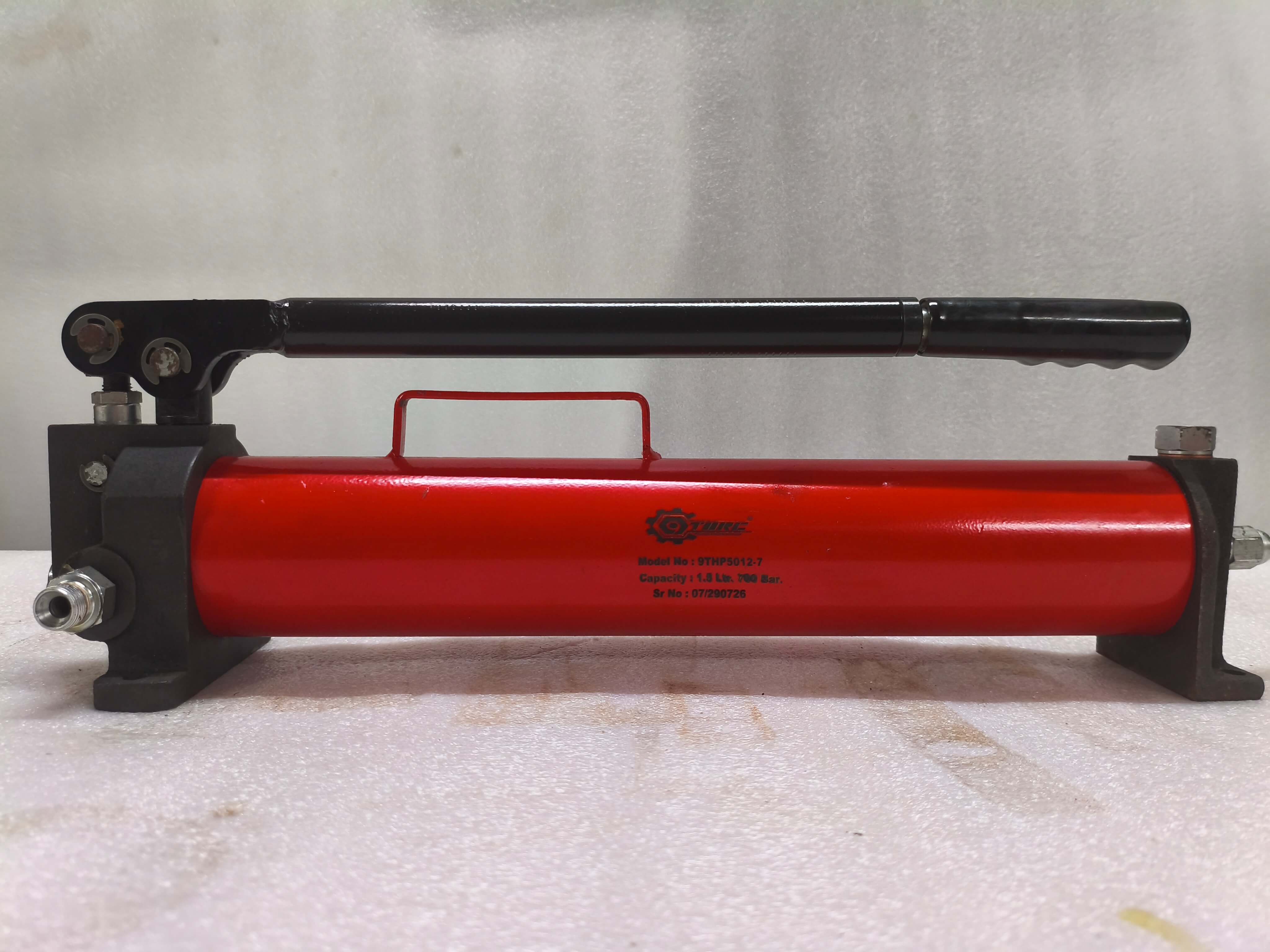

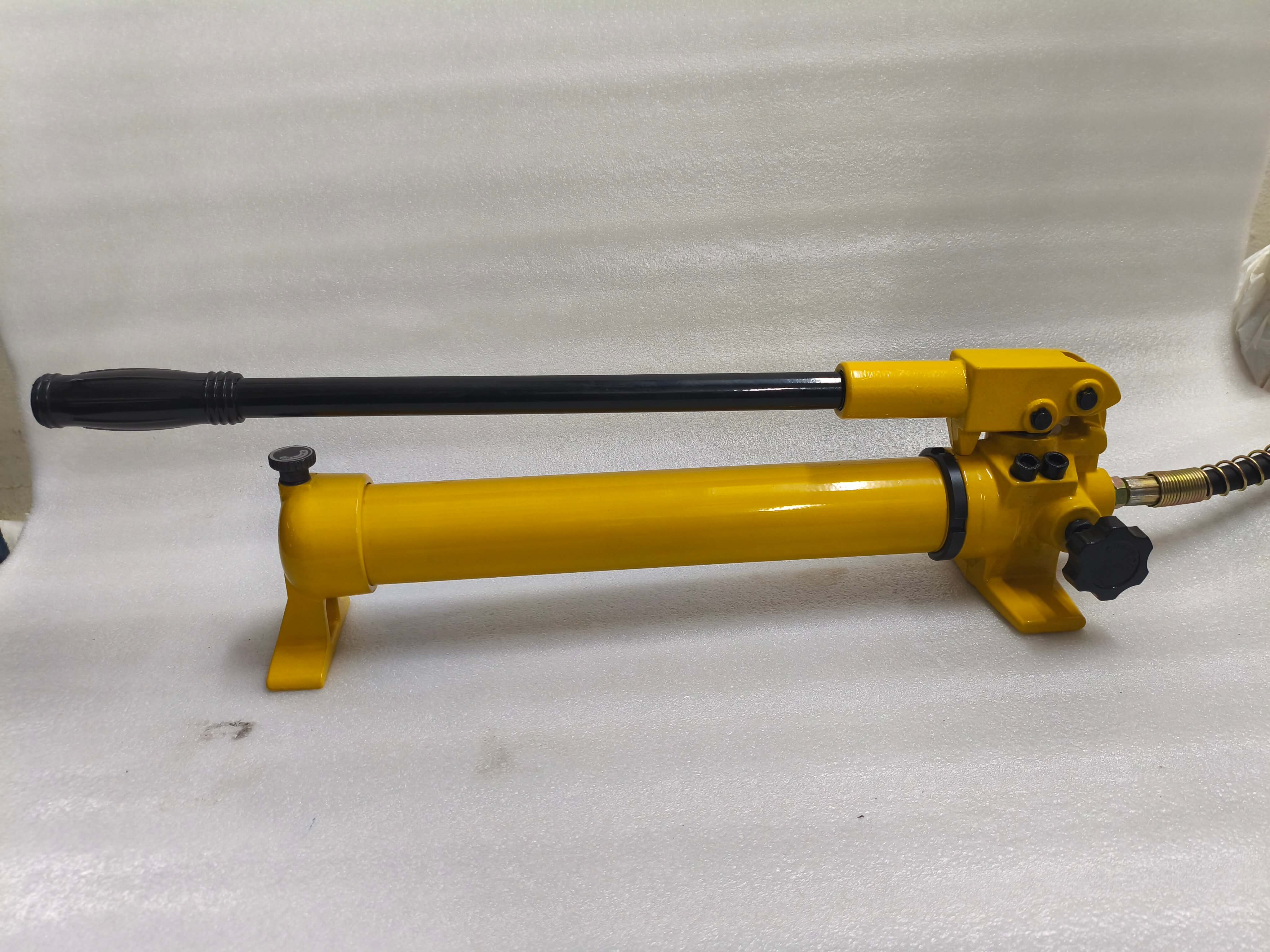

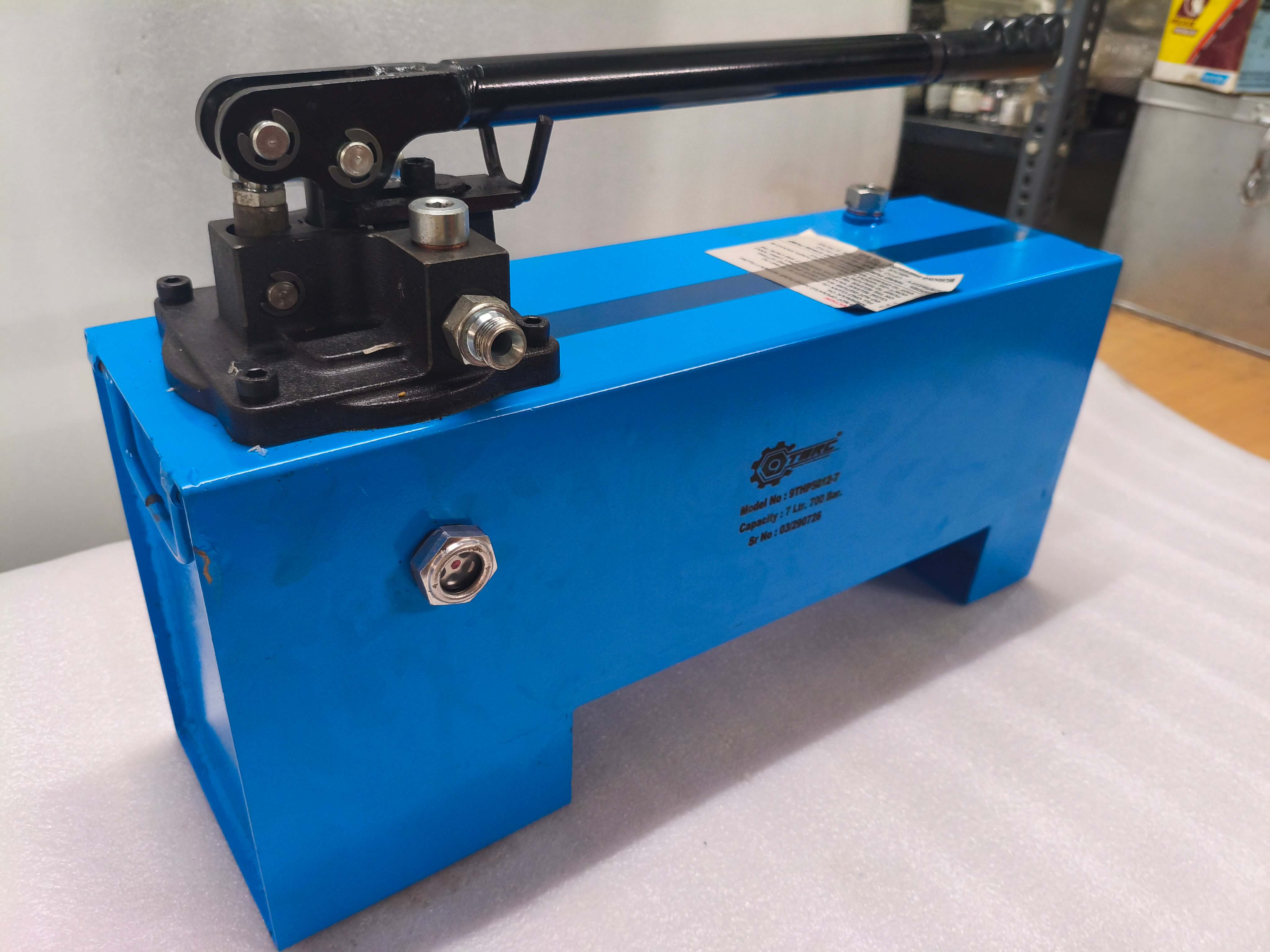

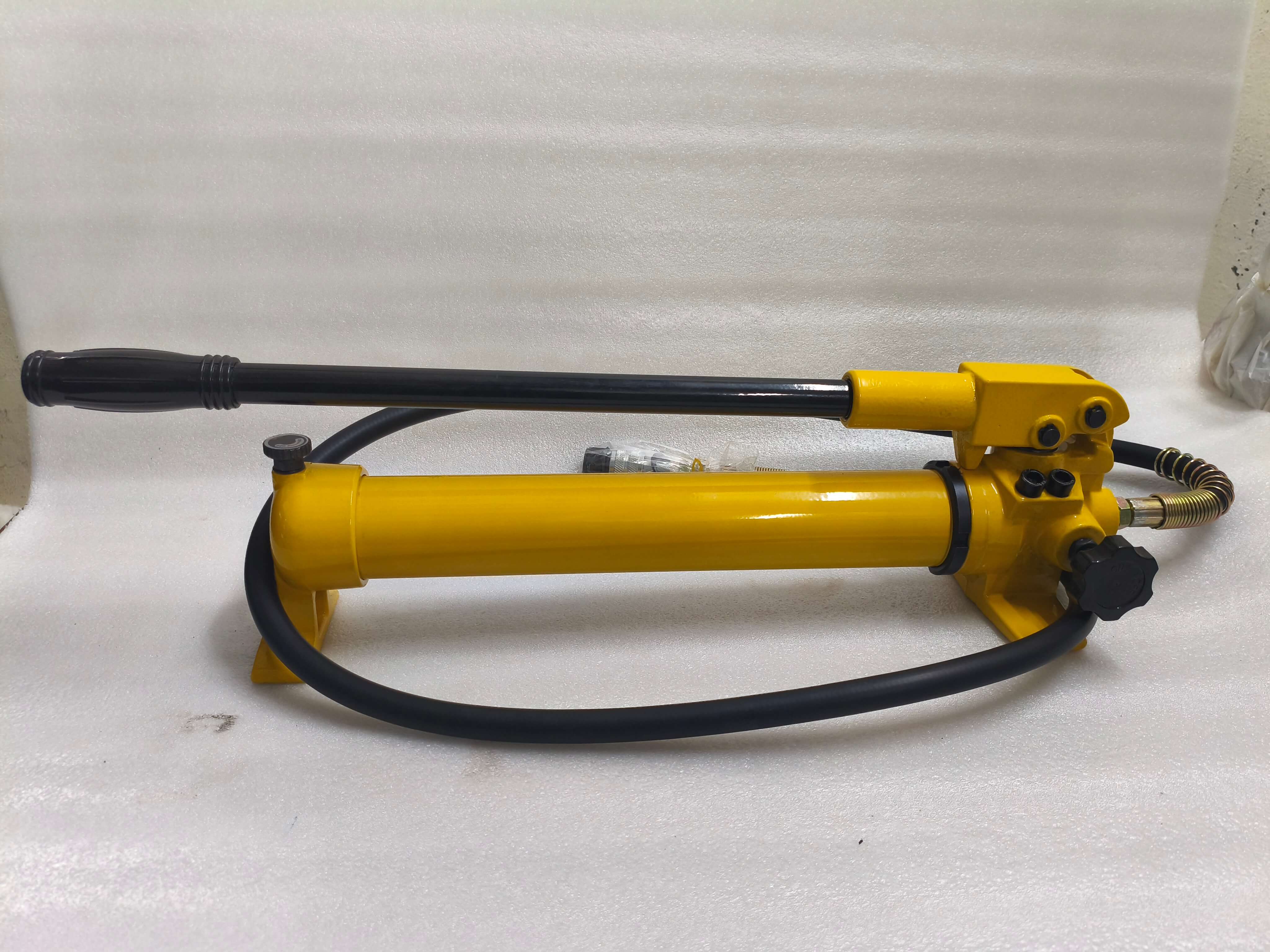

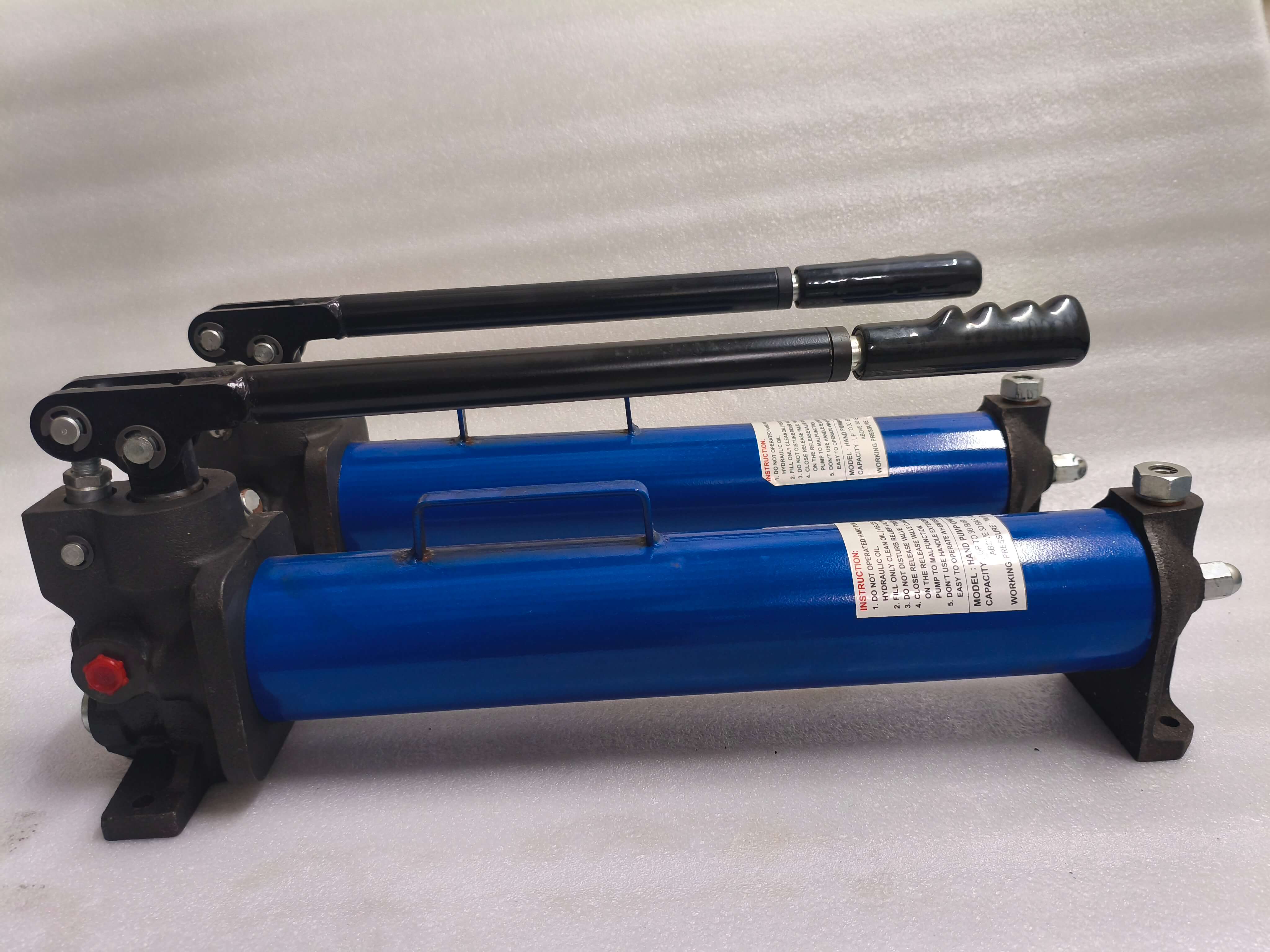

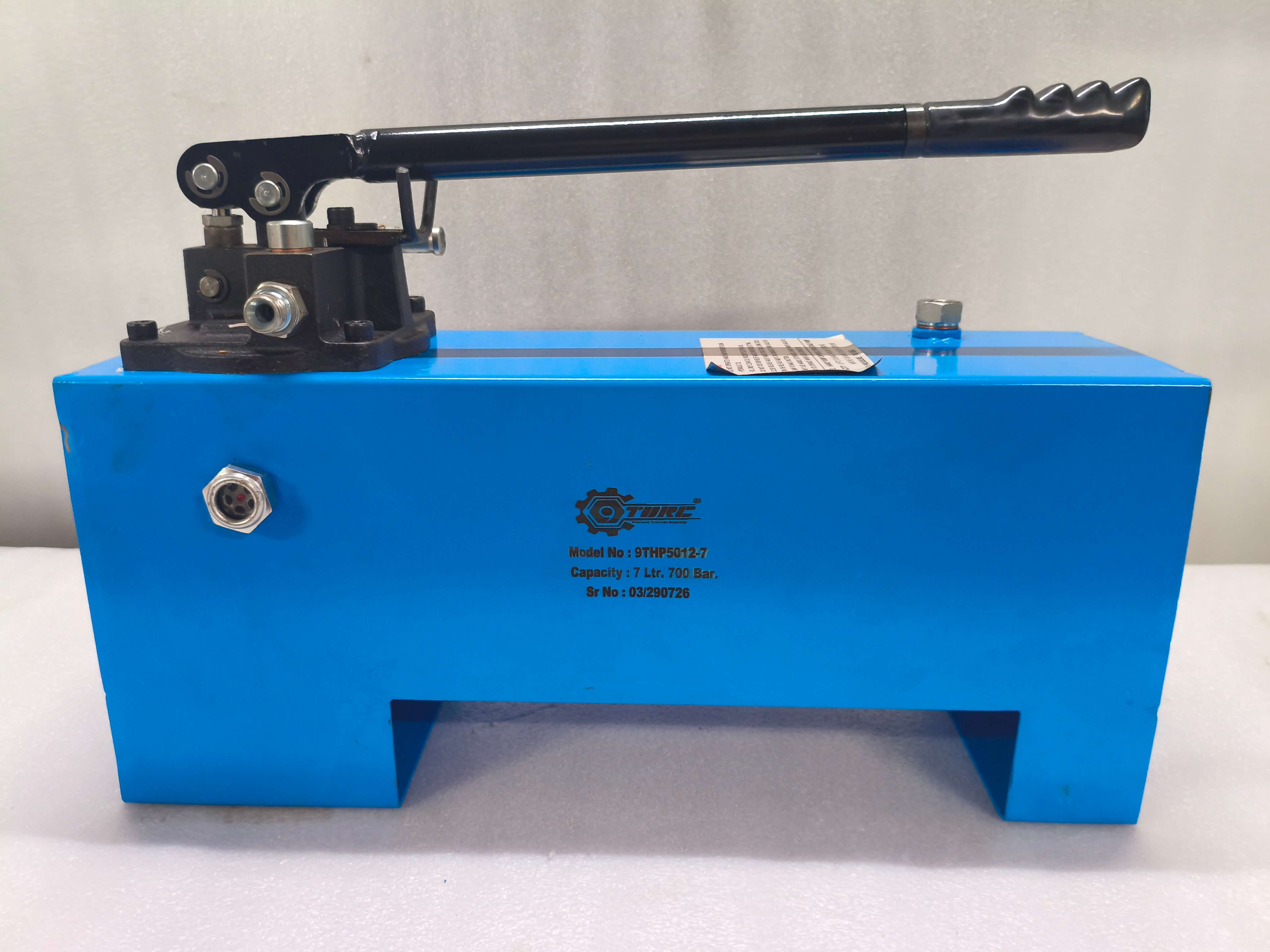

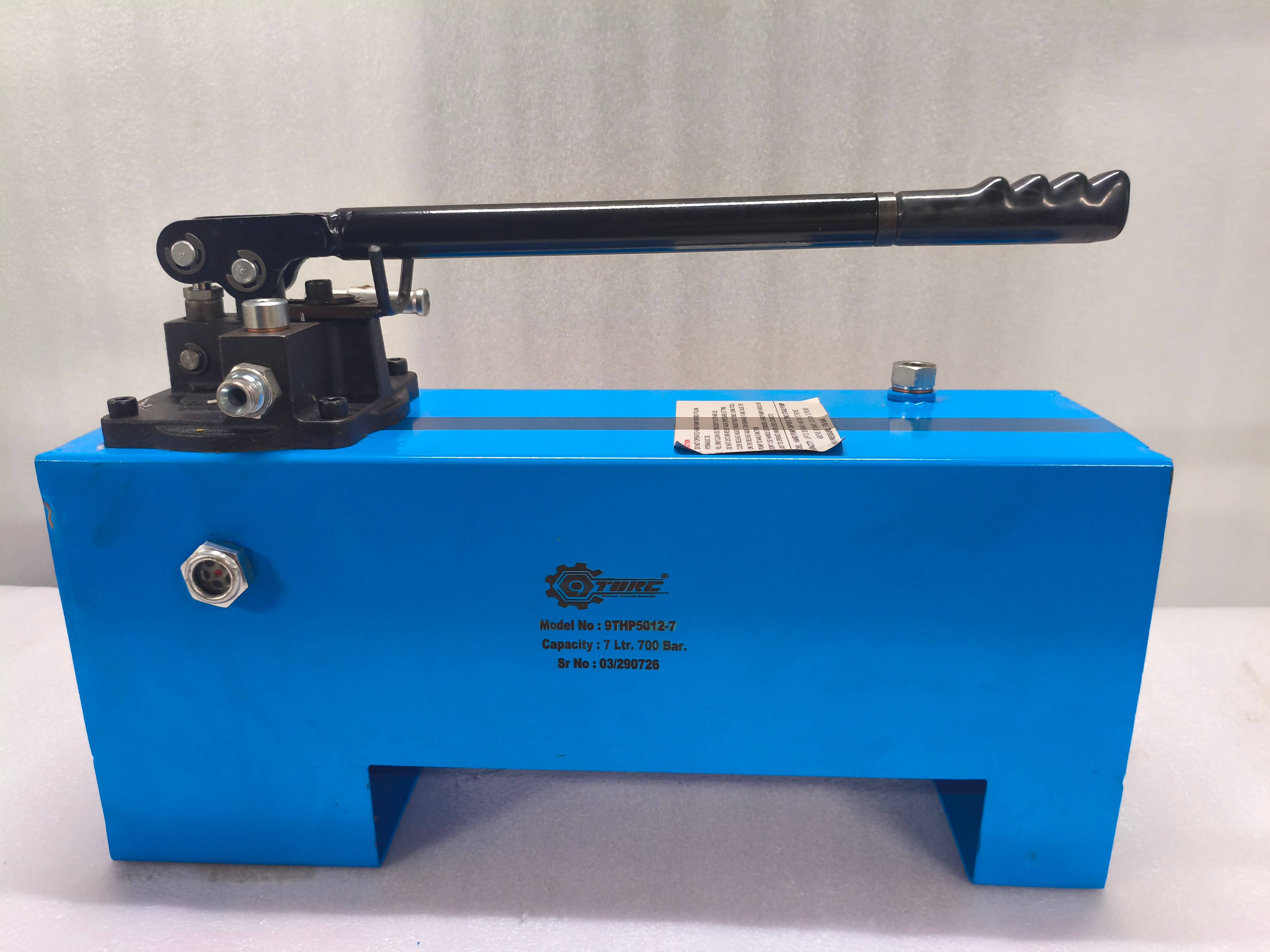

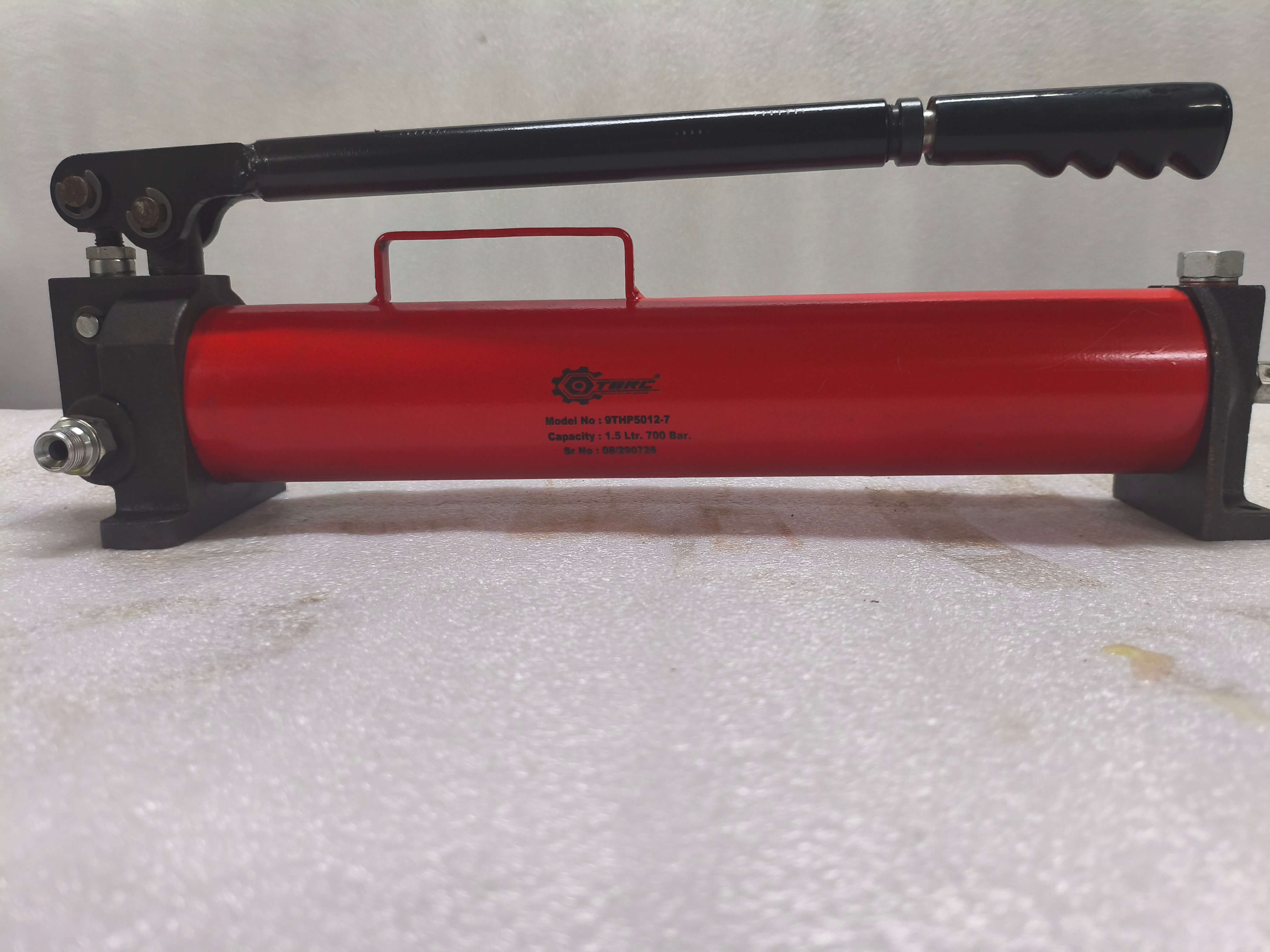

Hydraulic Hand Pump

Product Introduction

9TORC Hydraulic Hand Pump is a manually operated high-pressure hydraulic pump designed to provide controlled hydraulic pressure for various hydraulic tools and equipment. Its compact construction and simple manual operation make it suitable for field applications where electrical or pneumatic power sources are not readily available.

The pump is designed for reliable pressure generation and controlled hydraulic operation in industrial maintenance, lifting, pulling, tensioning and bolting applications.

Key Specifications

Manual hydraulic operation
Maximum working pressure: Up to 700 bar
Oil reservoir capacity: 4 / 8 / 13 / 20 Ltr
Pressure release: Controlled pressure release mechanism
Compact and portable construction

Applications

Hydraulic torque wrench operation
Hydraulic bolt tensioning
Hydraulic jacking and lifting
Hydraulic pulling applications
Industrial maintenance and repair

Technical Specifications

Model No.	Stage	Pressure (Bar)		Flow/Stroke (CC)		Filling Capacity (Ltrs.)	Usable Oil (Ltrs.)	Handle Effort (Kgs.)	Dry Weight (Kgs.)
Model No.	Stage	1st Stage	2nd Stage	1st Stage	2nd Stage	Filling Capacity (Ltrs.)	Usable Oil (Ltrs.)	Handle Effort (Kgs.)	Dry Weight (Kgs.)
9THP-1-1.4	Single	-	700	-	2.8	1.4	1	40	7.4
9THP-1-2	Single	-	700	-	2.8	2	1.5	40	9.5
9THP-2-1.4	Two	30	700	17	2.8	1.4	1	40	10.5
9THP-2-2	Two	30	700	17	2.8	2	1.5	40	11.5
9THP-2-3	Two	30	700	17	2.8	3	1.9	40	12.5
9THP-2-5	Two	30	700	49	2.8	5	3.5	40	18.5
9THP-2-8	Two	30	700	49	2.8	8	7.5	40	20
9THP-2-13	Two	30	700	49	2.8	13	11	40	24.5
9THP-2-20	Two	30	700	49	2.8	20	16	40	28

Construction & Design

The hand pump is built for field use with a sturdy hydraulic body, ergonomic operating handle and high-pressure hydraulic components. Its compact design allows easy transportation and positioning at the worksite.
