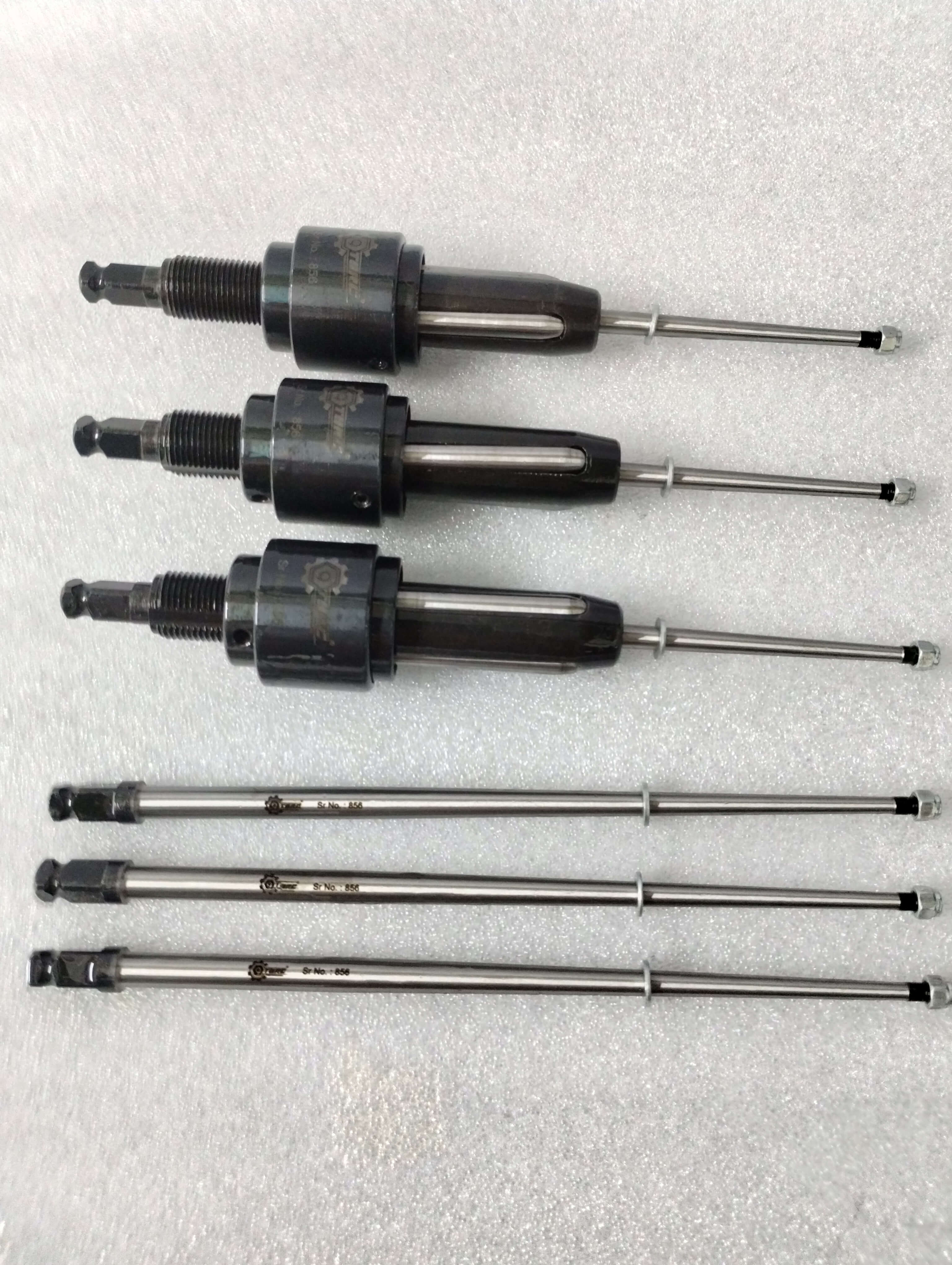

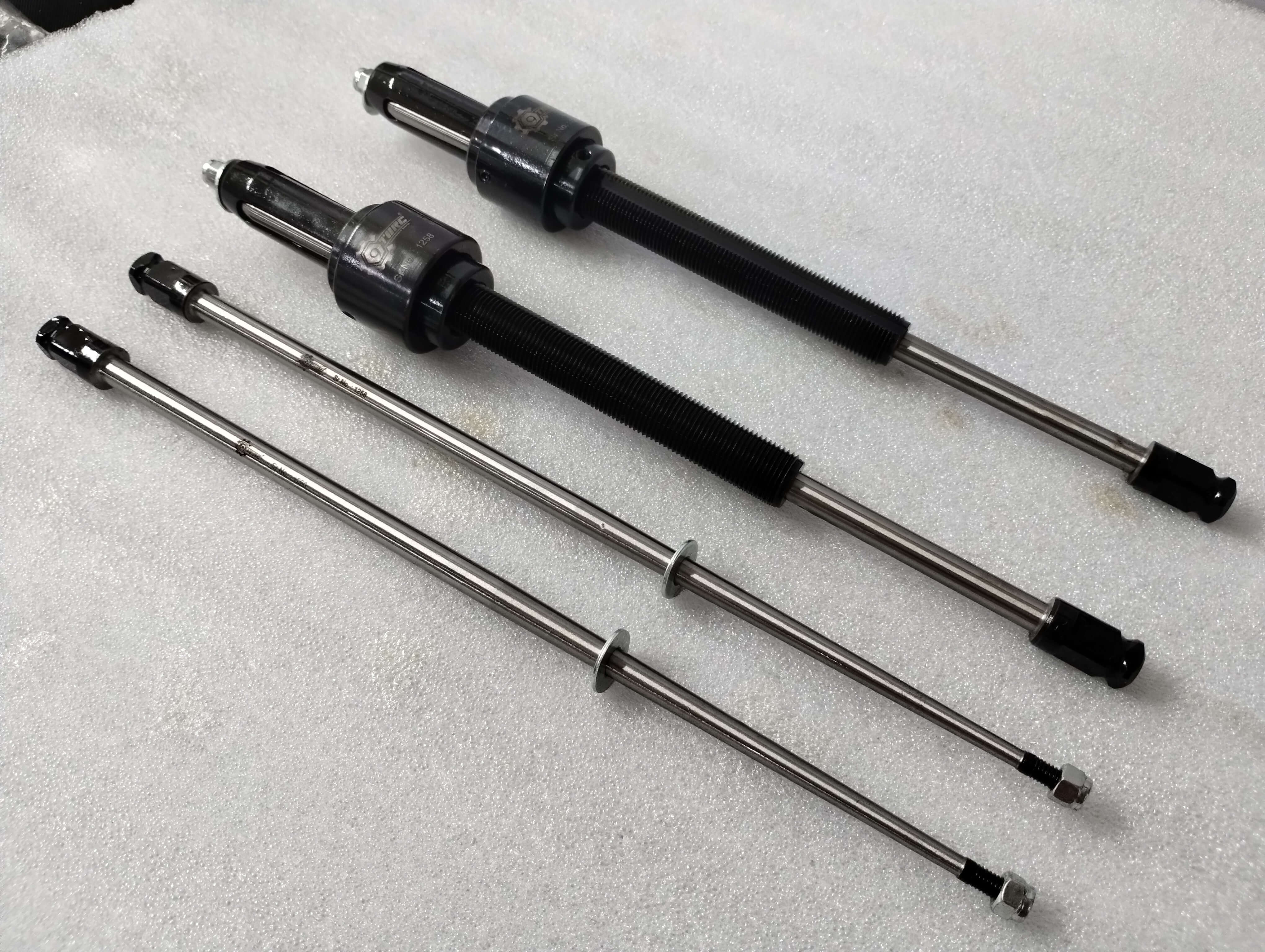

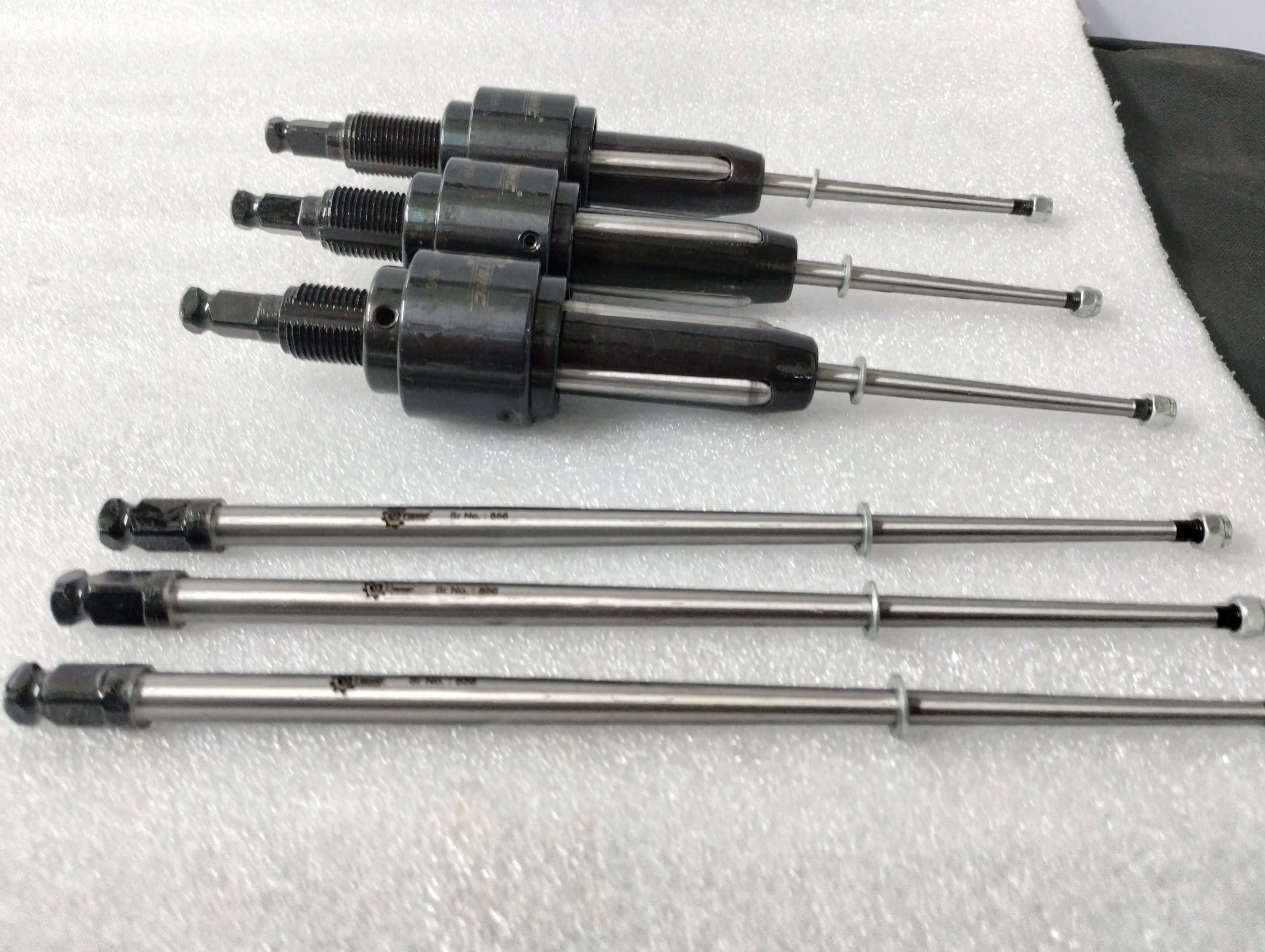

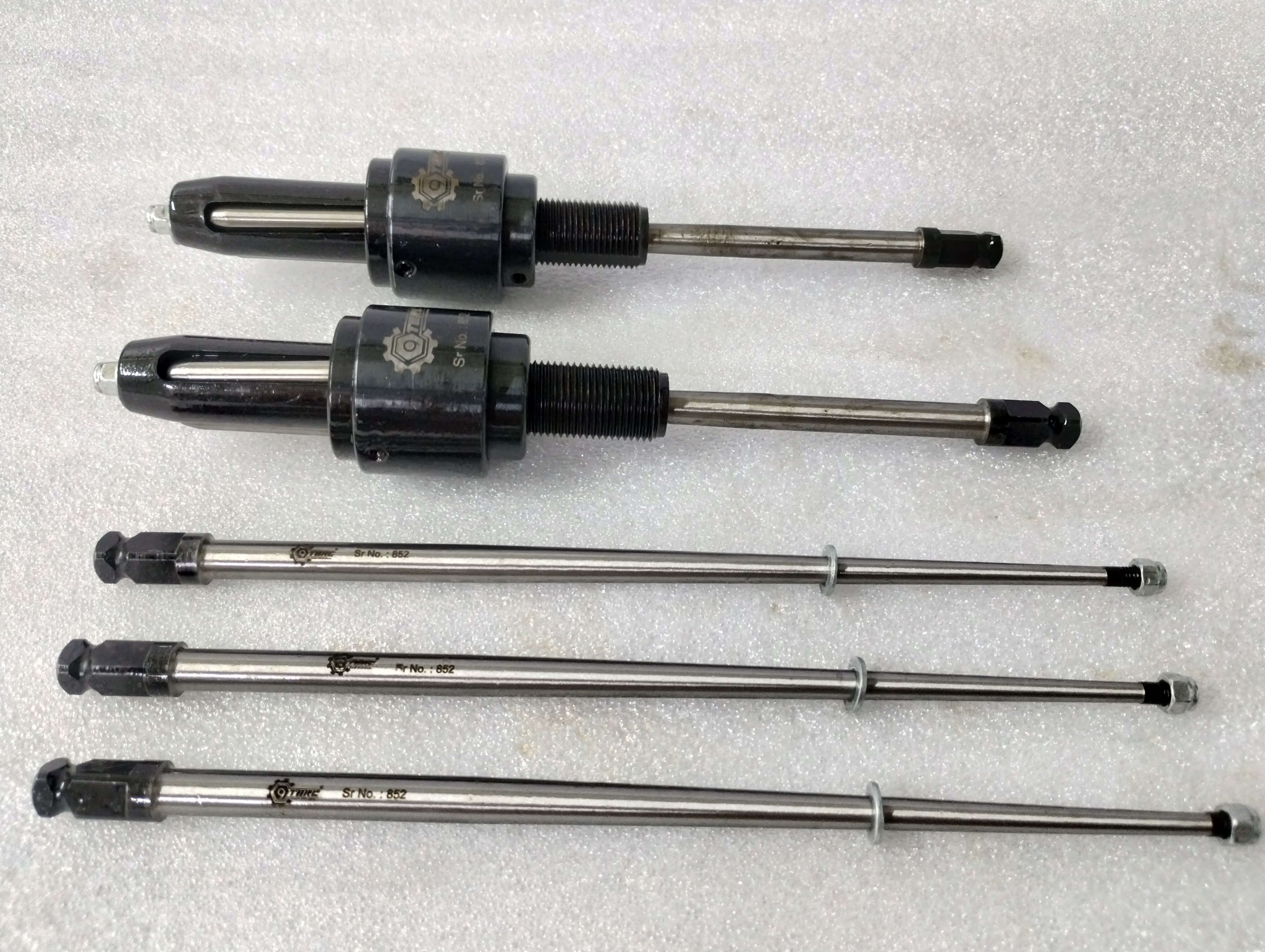

Tube Expander

Product Introduction

9TORC Tube Expander is designed for controlled expansion of tubes into tube sheets, helping create secure and leak-resistant tube-to-tube-sheet joints. The tool provides controlled mechanical expansion while maintaining uniform contact between the tube and tube sheet.

Designed for industrial heat-transfer equipment, the tube expander is suitable for applications involving boilers, condensers, heat exchangers and similar equipment.

Key Specifications

• Controlled Tube Expansion
• Tube Diameter Range: 12 to 60 mm
• Expansion Type: Mechanical/Roller Expansion
• High-Strength Expansion Rollers
• Precision Mandrel
• Uniform Tube-to-Tube-Sheet Expansion
• Reduced Tube Damage

Construction & Design

The tube expander incorporates a precision mandrel and expansion rollers designed to provide controlled and uniform tube expansion. The configuration can be selected according to tube material, tube diameter and tube-sheet requirements.

Applications

• Heat exchangers
• Boilers
• Condensers
• Power plant maintenance
• Petrochemical equipment
• Industrial heat-transfer equipment
• Tube-to-tube-sheet assembly
